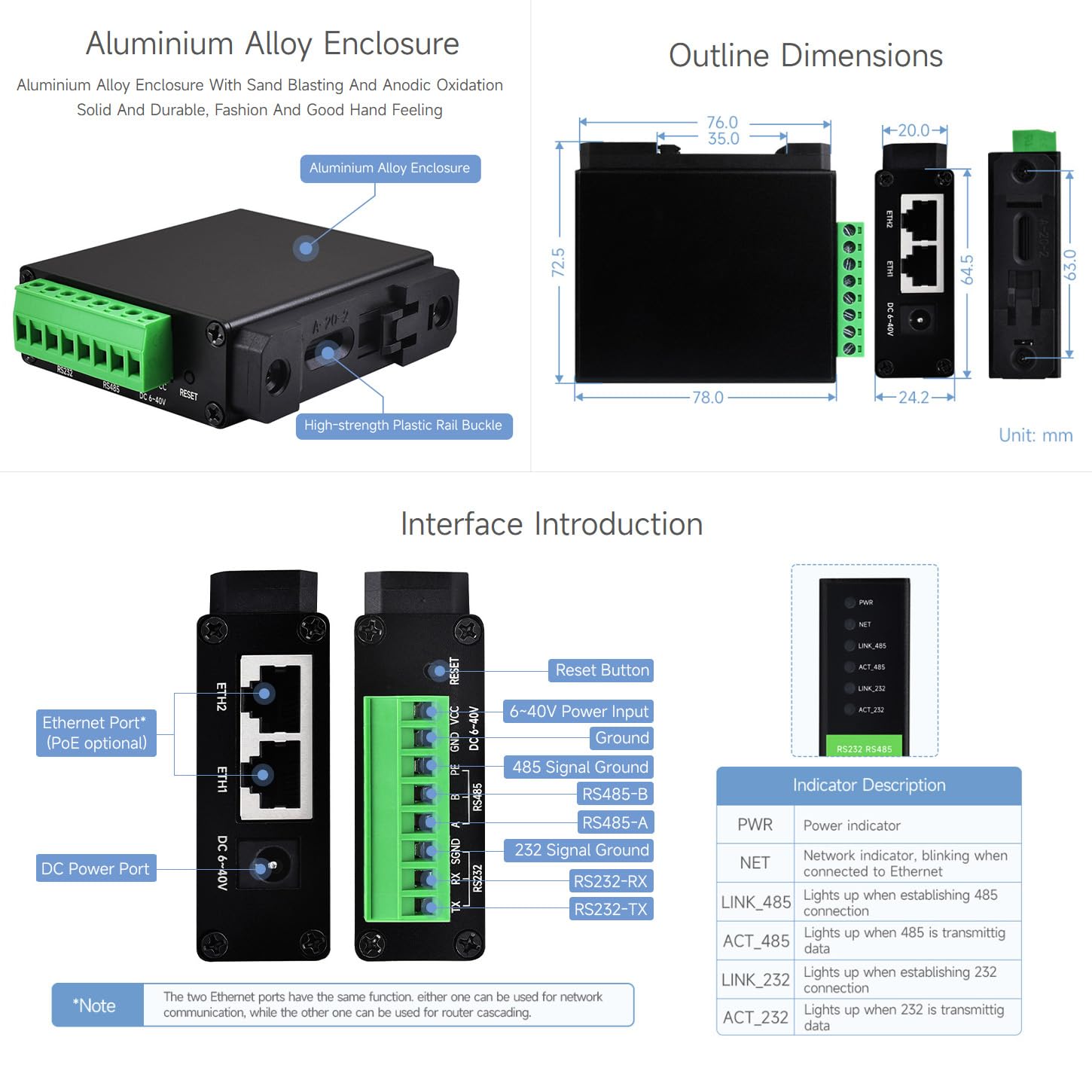

Waveshare RS232 RS485 To RJ45 Ethernet Serial Server Dual Channels Independent Operation Dual Ethernet Ports PoE Network Ports Rail-Mount Industrial Isolated Serial Module

Marchio: Waveshare
Interfaccia hardware: Ethernet
Dispositivi compatibili: Console di gioco
Dimensioni del prodotto: 7,8L x 7,3l x 2,4H cm
Produttore: Waveshare

- RS232 RS485 To RJ45 Ethernet Serial Server, RS232 And RS485 Dual Channels Independent Operation, Dual Ethernet Ports, Rail-Mount Industrial Isolated Serial Module, Bi-Directional Transparent Transmission-Dual serial ports + PoE network port + Electrical isolation

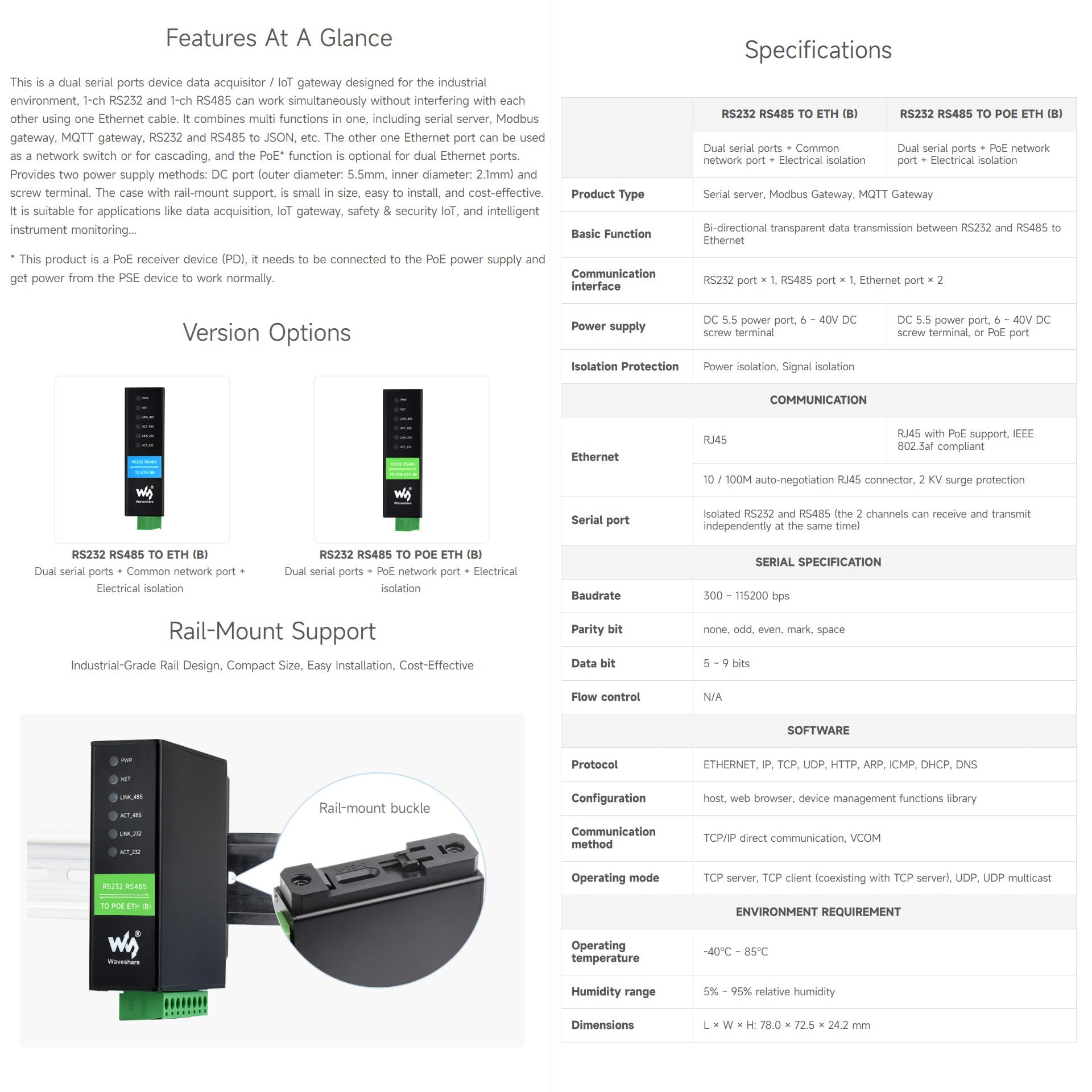

- This is a dual serial ports device data acquisitor / IoT gateway designed for the industrial environment, 1-ch RS232 and 1-ch RS485 can work simultaneously without interfering with each other using one Ethernet cable.

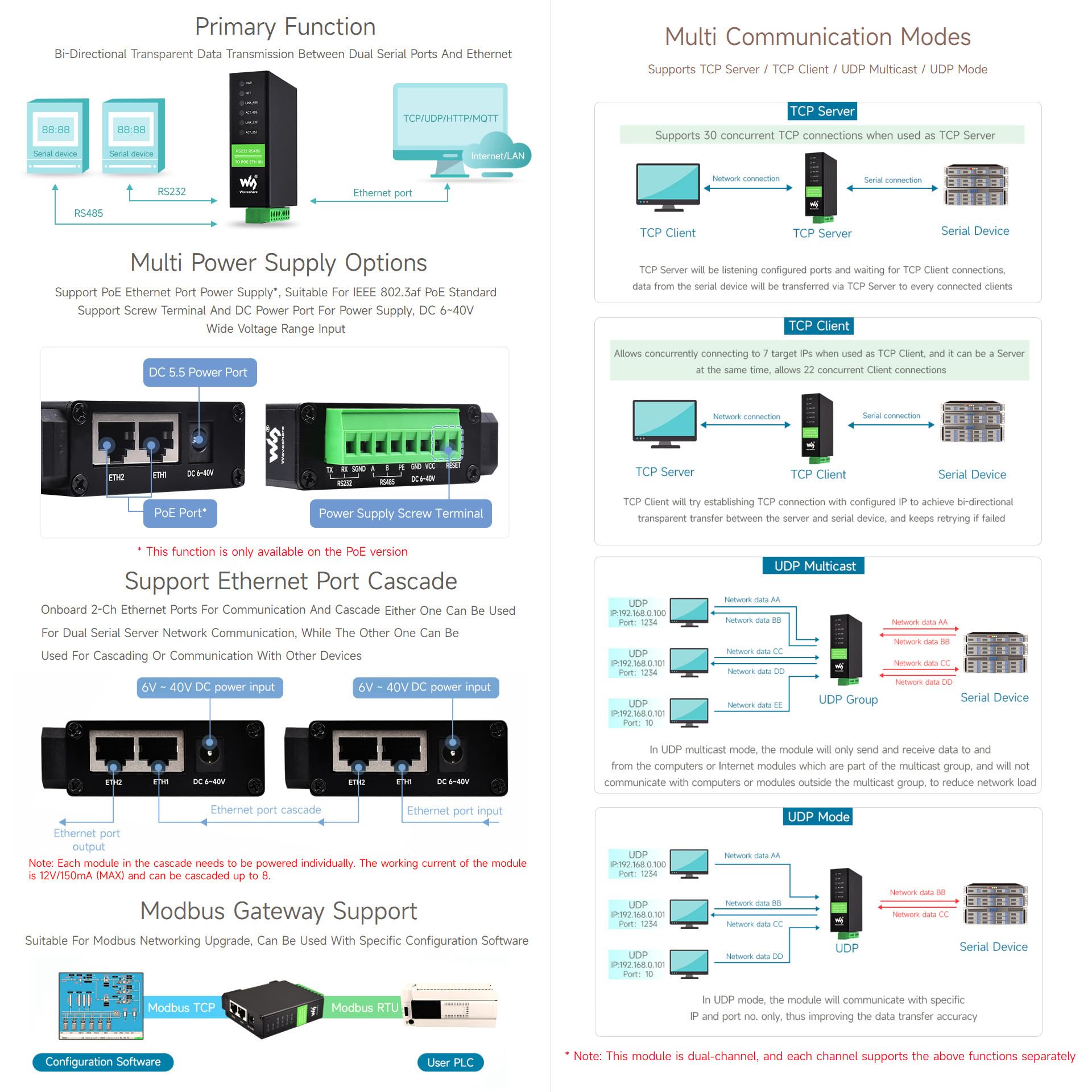

- It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 and RS485 to JSON, etc. The other one Ethernet port can be used as a network switch or for cascading, and the PoE* function is optional for dual Ethernet ports.
- Provides two power supply methods: DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal. The case with rail-mount support, is small in size, easy to install, and cost-effective.
- It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring. This product is a PoE receiver device (PD), it needs to be connected to the PoE power supply and get power from the PSE device to work normally.
