ZDE ZP596C PCIe to M.2 E Key HAT Magnetic Base Antenna WiFi7 6 6E 5 PCIe to 2.5G Ethernet Network Port HAT with ZC506 Case for Raspberry Pi 5 Support Google TPU WiFi 7 BE200 WIFI6E AX210 MT7922 WIFI6

Marchio: ZDE
Sistema operativo: Raspberry Pi OS Bookworm
Modello CPU: Intel Core i9
Velocità CPU: 5 GHz
Produttore CPU: ARM
Descrizione disco rigido: SSD
Numero modello CPU: 123

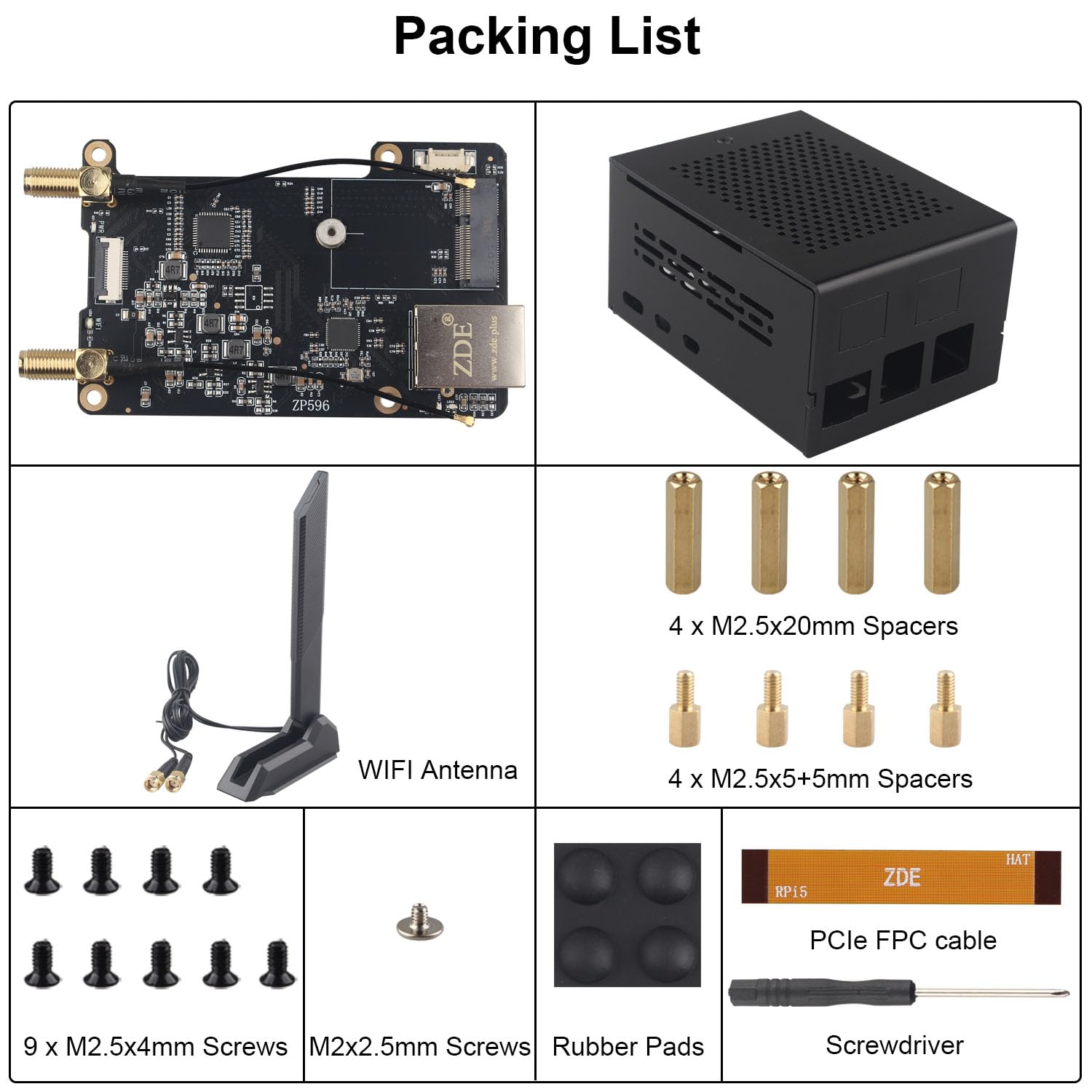

- This kit includes a ZP596C PCIe Peripheral Board and a ZC506 aluminum alloy case (ASIN: B0F93SQ67G). It is compatible with the latest Raspberry Pi 5 2GB/4GB/8GB/16GB board.
- This expansion board adds one M.2 E-KEY interface and one 2.5GBE network port for Raspberry Pi 5, which can meet your various needs for those who need to use Raspberry Pi 5 as a Router, Gateway, Firewall, Robot, Smart Home, NAS, VOIP, Industrial Equipment, Telecommunications Equipment and other network devices that need more than one network port.
- Through the PCIe interface with PCIe Switch chip to expand into two PCIe interfaces, one to achieve the expansion of M.2 E-KEY and the other to achieve the expansion of 2.5Gbps Ethernet through the RTL8125 chip.

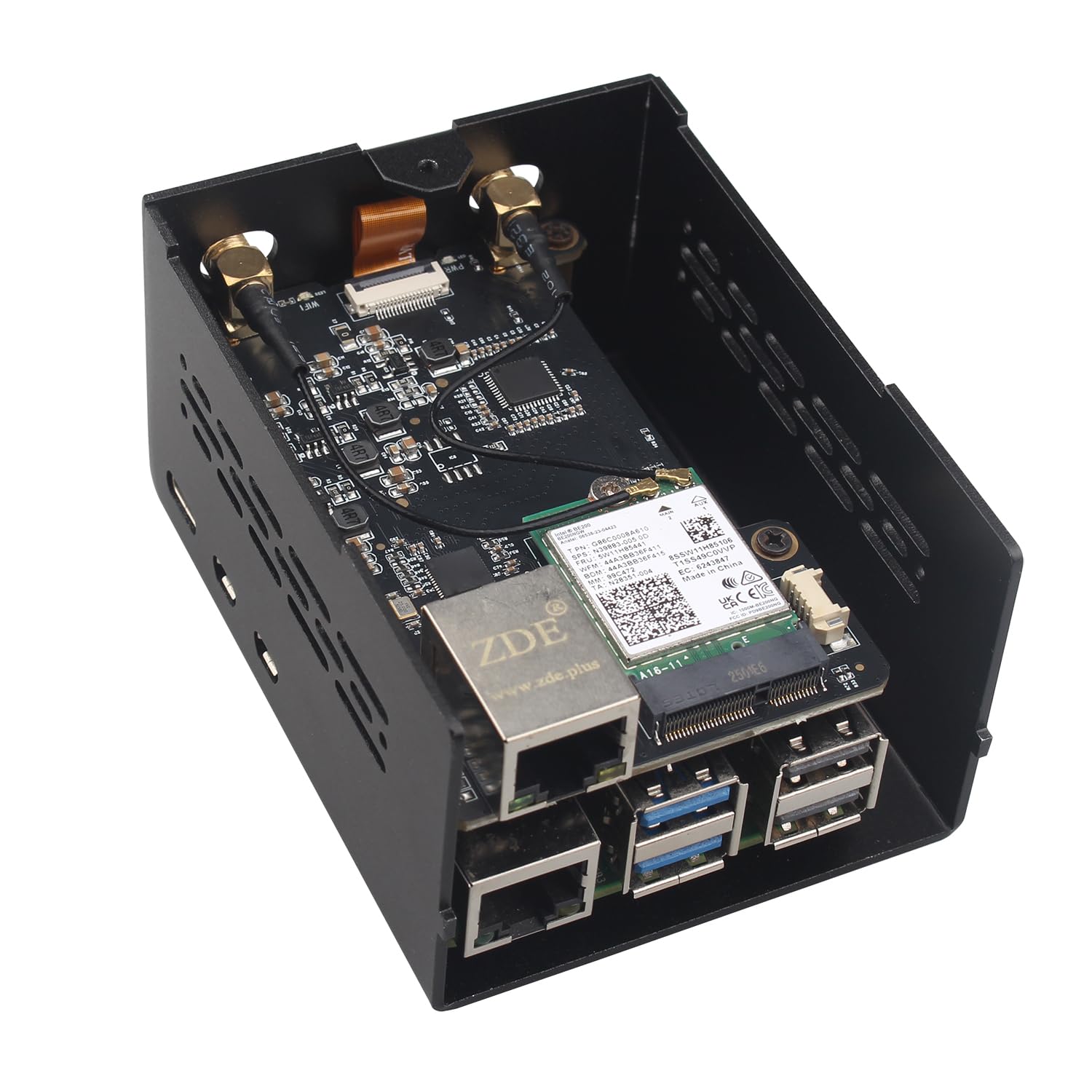

- The ZP596C is an adapter board with PCIe interface for WiFi7/6/6E/5, allowing Raspberry Pi 5 motherboard to use the latest WIFI7 module. The WIFI7 module can be inserted into the ZP596C adapter board via the M.2 E-KEY interface, which provides an opportunity for a wide range of Raspberry Pi 5 users to be able to use the latest WIFI7.

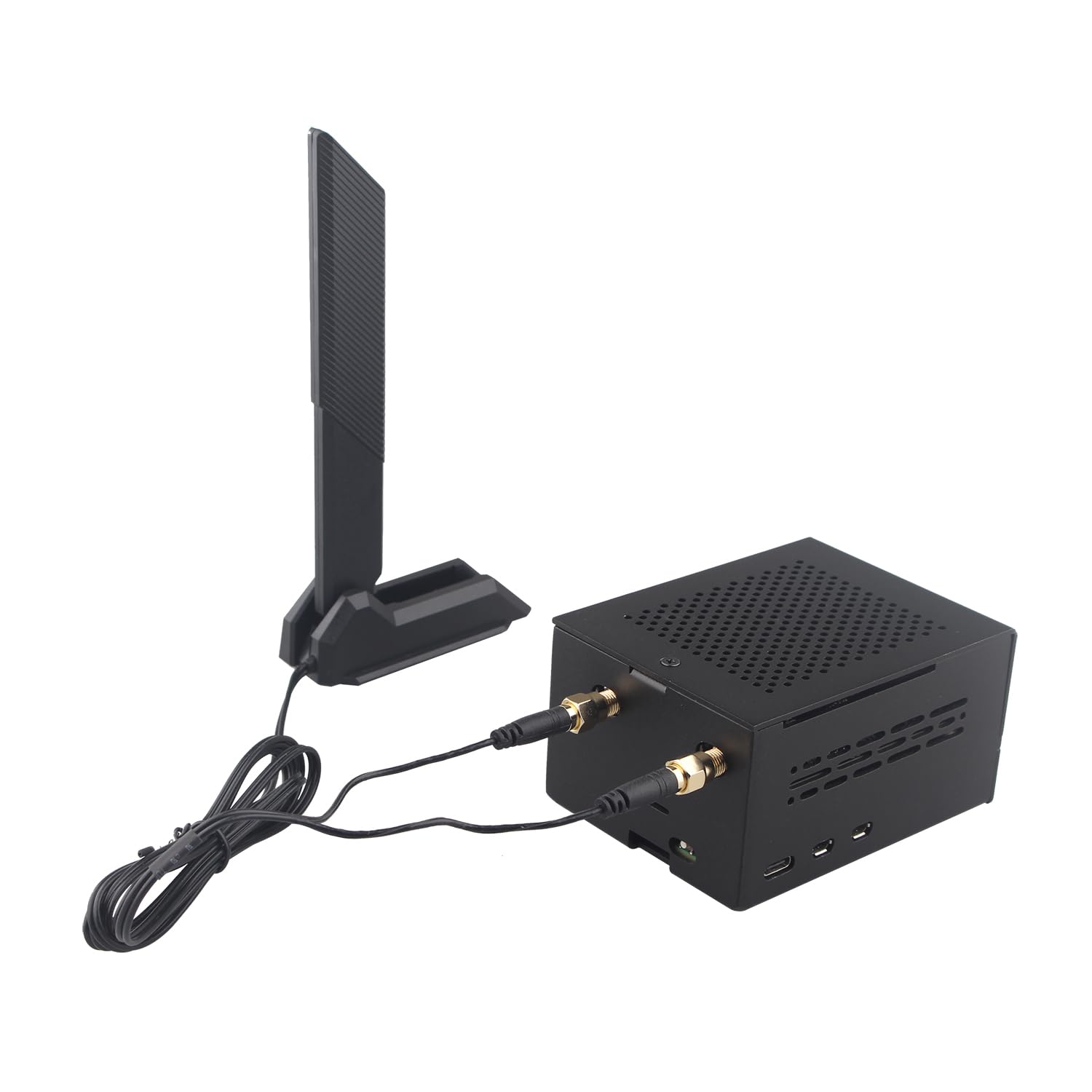

- Equipped with Tri-Band RP-SMA WiFi Antenna, the 180° rotatable design provides you with the best signal. Magnetic base, 3.94ft cord length, allowing you to place it in the perfect spot.

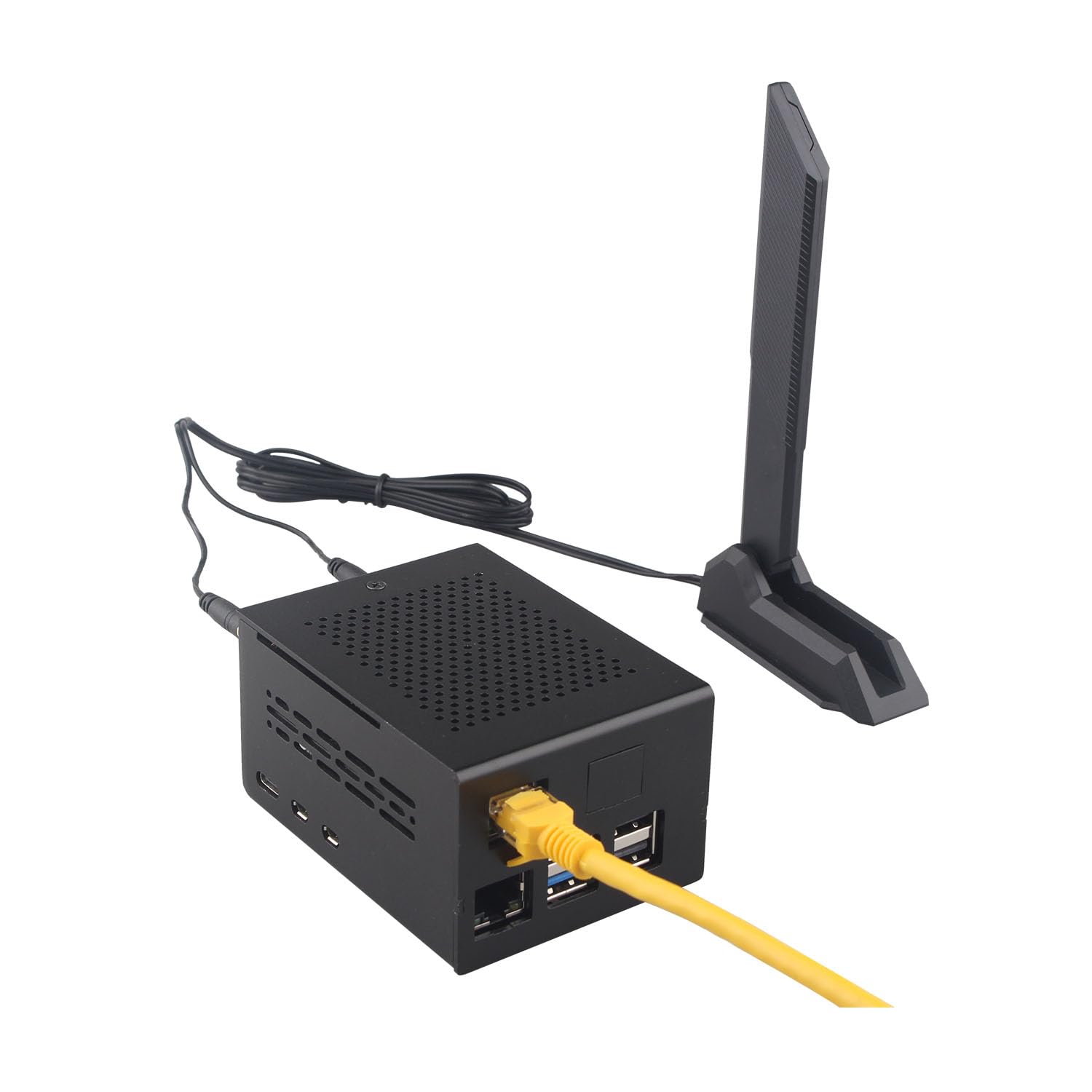

- The case is specifically designed for HAT expansion boards with 2.5G Ethernet Port. It is made of lightweight and durable aluminum alloy material, which can offer excellent protection and heat dissipation for the Raspberry Pi 5 board and expansion board.
